If you are not satisfied with your factory radio since it is too outdated to be compatible with numerous modern features, it will be a great choice of you to replace it with a new aftermarket car radio. With such an ideal car radio installed in your car, you can get access to a wide range of comprehensive feature that you are longing for. The following is an easy-to-understanding 2009 2010 2011 2012 2013-2015 Hyundai IX35 car radio installation guide from Seicane which I would like to share with you. If you have the same or similar dashboard, you can carefully refer to this installation guide.

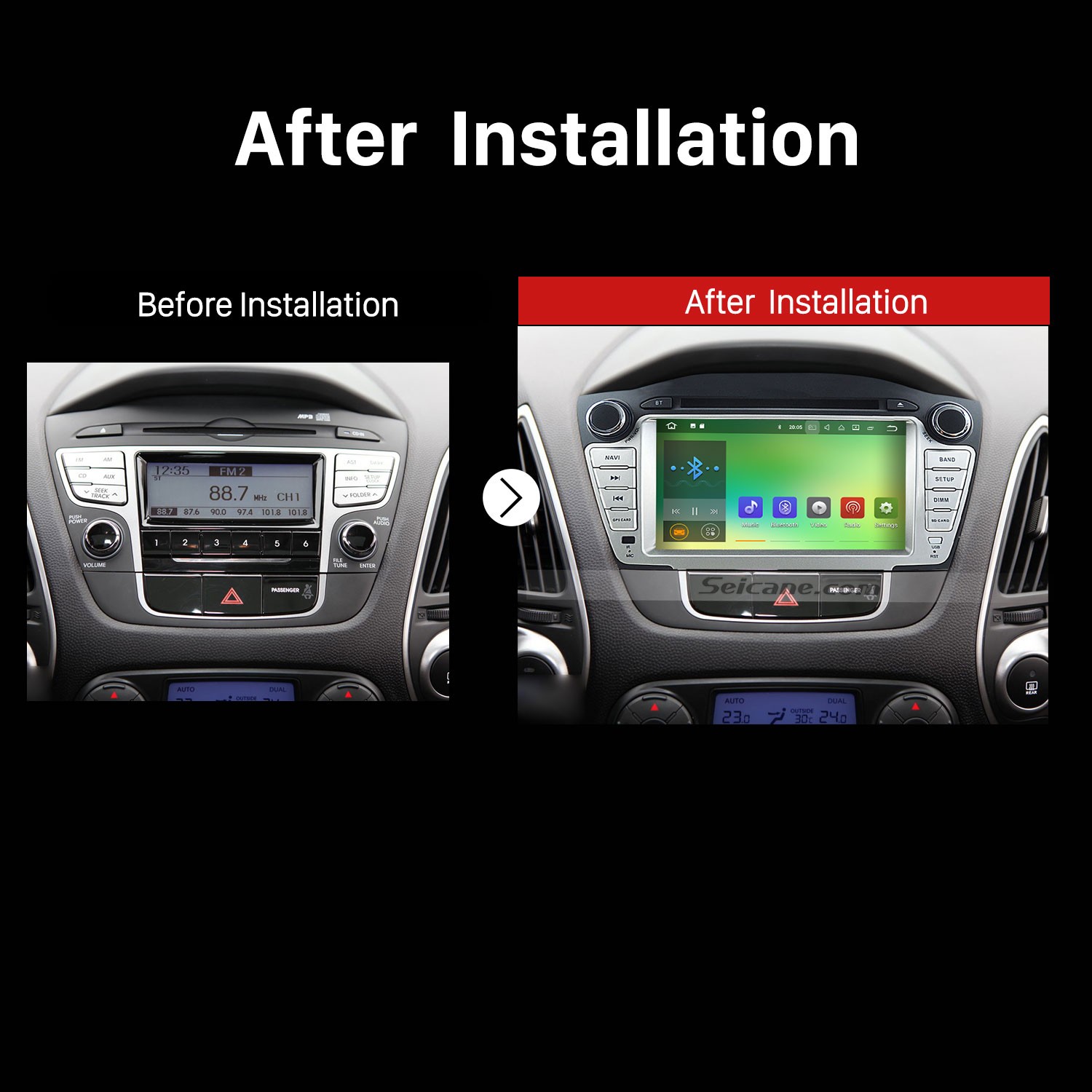

2009 2010 2011 2012 2013-2015 Hyundai IX35 Stereo after installation
Some tips before the installation:
1. Please disconnect the power before the installation.
2. Please prepare a lever and a screwdriverbefore the removal and the installation.
3. Please keep all the separate parts from the car. Please take great care of the dashboard to avoid scratching it during its detachment and installation. Please keep handy any parts from the car and make use of all the original screws from the car as much as possible. so each related part of the unit can be fixed securely.
4. For your convenience, here’s therecommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400
2009 2010 2011 2012 2013-2015 Hyundai IX35 car radio installation guide

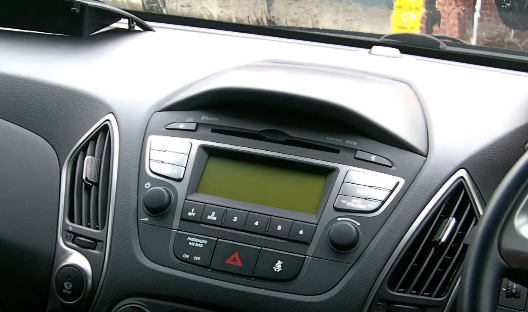

1. The original car radio.
The original car radio

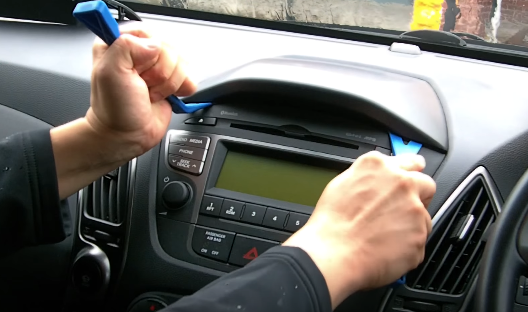

2. Use a plastic removal tool to remove the cover panel.
Use a plastic removal tool to remove the cover panel

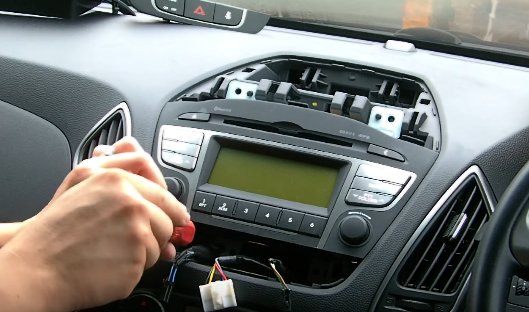

3. Unscrew two top screws fixed the radio on the dashboard.
Unscrew two top screws fixed the radio on the dashboard

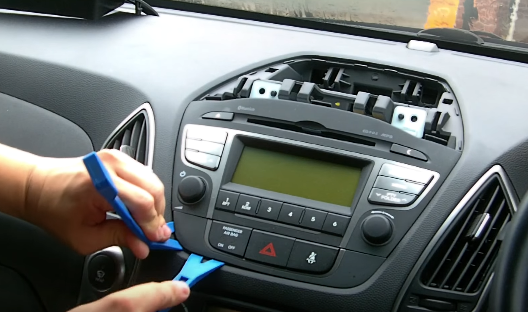

4. Remove the air conditioning panel with a plastic removal tool and then disconnect the connectors at the back.
Remove the air conditioning panel with a plastic removal tool and then disconnect the connectors at the back

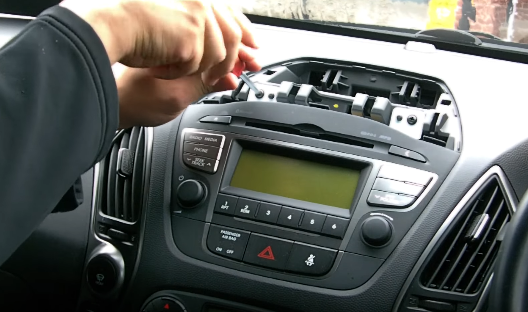

5. Remove another two screws that fixed the radio on the dashboard.
Remove another two screws that fixed the radio on the dashboard

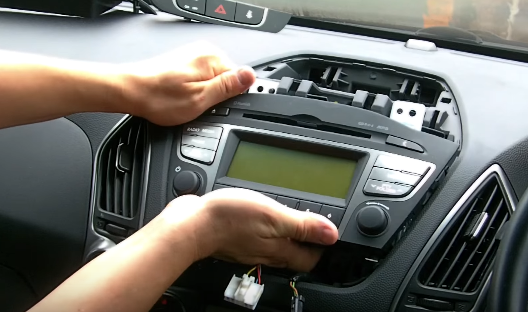

6. Take out the original radio.
Take out the original radio

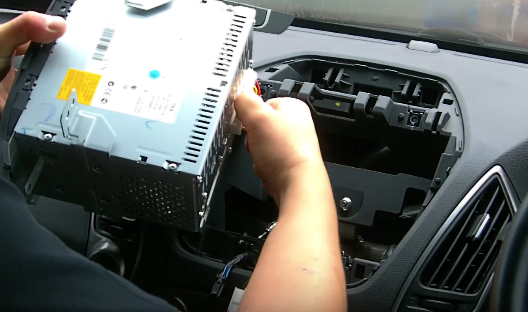

7. Disconnect the connectors and cables at the back of the radio.
Disconnect the connectors and cables at the back of the radio
8. Check all the accessories for the new Seicane car radio.
9. Connect the harnesses to the back of the new Seicane car radio.
10. Connect the Seicane car radio to your original stereo’s plugs.
11. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.
12. Put the new Seicane car radio into the dash.
13. Put everything into their original place. All the installation is done.
Before installation, please make clear every detailed step. If you have encountered any problems you cannot deal by yourself, you can seek help from your dealer, someone experienced or a professional. Anyway, first of all, what you need to do is to select an ideal car radio. If you don’t have any ideas, you may check out the following link which is an amazing 2009 2010 2011 2012 2013-2015 Hyundai IX35 car radio from Seicane. Here comes the link, please click:
Loaded with the most advanced Android 7.1.1 operation system and a high-quality quad-core CPU processor, this amazing car radio can be regarded as one of the good choices for you to upgrade your in-car environment and driving experience.
With it installed in your car, you can get access to a wide range of practical and entertainment features, including 3D GPS navigation, FM/Am radio tuner, Bluetooth hands-free call, Bluetooth streaming music, AUX, file management, etc.
As long as you make full use of turn-by-turn direction and voice prompt provided by the high-accuracy 3D GPS navigation, you can easily know your current location and find the right way to reach your destinations. And with dual zone function, this unit enables you to freely listen to your favorite music while navigating, which won’t have any negative influence on GPS function.
If you like this car radio, just add it to your shopping cart. Good luck!
