Have you already got your ideal car radio for your beloved car? And would you like to remove your factory radio and install the new car radio by yourself? If your answers toward these questions are both “yes”, then you can follow a correct installation guide to help with the installation. This article aims to introduce a 2006 2007 2008 2009-2012 VW VOLKSWAGEN MAGOTAN car radio installation guide from Seicane. If you own the same or similar dashboard, you can refer to this guide carefully.
2006 2007 2008 2009-2012 VW VOLKSWAGEN MAGOTAN car radio after installation
Some tips before the installation:
1. Please disconnect the power before the installation.
2. Please prepare a lever and a screwdriver before the removal and the installation.
3. Please keep all the separate parts from the car. Please take great care of the dashboard to avoid scratching it during its detachment and installation. Please keep handy any parts from the car and make use of all the original screws from the car as much as possible. so each related part of the unit can be fixed securely.
4. For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400
2006 2007 2008 2009-2012 VW VOLKSWAGEN MAGOTAN car radio installation guide
1. Remove the top panel with a lever.
Remove the top panel with a lever
2. Disconnect the connector at the back of the panel.
Disconnect the connector at the back of the panel
3. Unscrew the screw with a screwdriver.
Unscrew the screw with a screwdriver
4. Remove the metal sheet on the top with your hands.
Remove the metal sheet on the top with your hands
5. Unscrew two screws circled in red shown as follows under the metal sheet.
Unscrew two screws circled in red shown as follows under the metal sheet
6. Remove the air conditioner vent with your hands.
Remove the air conditioner vent with your hands
7. Unscrew two screws under the vent with a screwdriver.
Unscrew two screws under the vent with a screwdriver
8. Remove the panel on the original car radio.
Remove the panel on the original car radio
9. Unscrew four screws holding the original car radio with a screwdriver.
Unscrew four screws holding the original car radio with a screwdriver
10. Take the original car radio out of the dash.
Take the original car radio out of the dash
11. Disconnect all the connectors at the back of the original car radio.
Disconnect all the connectors at the back of the original car radio
12. Check all the accessories for the new Seicane car radio.
Check all the accessories for the new Seicane car radio

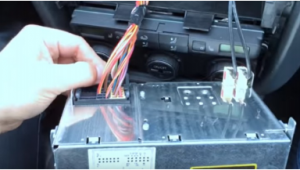

13. Connect the harnesses to the back of the new Seicane car radio.
Connect the harnesses to the back of the new Seicane car radio
14. Connect the Seicane car radio to your original car radio’s plugs.
15. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.
16. Put the new Seicane car radio into the dash.
17. Put everything into their original place.
Don’t worry if you meet any problems before or during the installation process. To solve these problems, you can contact your dealer, communicate with someone experienced or turn to a professional technician for help. And you can also directly go to a car radio upgrade center and ask a professional technician to help you install the new car radio.
What’s more, it is essential for you to select an ideal car radio. If you have no ideas, you can check out the following link which is a remarkable 2006 2007 2008 2009-2012 VW VOLKSWAGEN MAGOTAN car radio from Seicane. For more information, please click:
Loaded with the most advanced and stable Android 8.0 operation system, a high-quality 8-core CPU processor and 32GB INland flash as well as 4GB RAM. Besides, this car radio is compatible with a wide range of practical and entertainment features, which can meet your different needs in car. So if you get this powerful car radio installed in your car, your driving experience will be taken up a notch.
With the assistance of the built-in worldwide real-time GPS navigation system, you are able to easily locate where you are and accurately navigate to your ideal destination through the turn-by-turn directions and voice prompts. And while navigating, this unit’s dual zone function enables you to listen to your favorite music, and the music will automatically switch to GPS voice.
Besides, Bluetooth hands-free calls and streaming music are both available as long as you make your Bluetooth-enabled mobile phone pair with this car radio under the wireless Bluetooth technology.
Wish you have a wonderful driving experience accompanied by this unit. Good luck!
