If you want to upgrade your car’s capabilities, it will be a good idea for you to replace your factory radio with a new aftermarket car radio. And if you want to finish the upgrade process by yourself, you can find a related installation guide to help with your installation. The following is a 1998 1999 2000 2001 2002 Mercedes Benz E Class W210 E300 E320 E400 E420 E430 E55 car radio installation guide from Seicane, which can be taken as your reference if you have the same or similar dashboard.
1998 1999 2000 2001 2002 Mercedes Benz E Class W210 E300 E320 E400 E420 E430 E55 Car Radio after installation
Some tips before the installation:
1. Please disconnect the power before the installation.
2. Please prepare a lever and a screwdriver before the removal and the installation.
3. Please keep all the separate parts from the car. Please take great care of the dashboard to avoid scratching it during its detachment and installation. Please keep handy any parts from the car and make use of all the original screws from the car as much as possible. so each related part of the unit can be fixed securely.
4. For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400
1998 1999 2000 2001 2002 Mercedes Benz E Class W210 E300 E320 E400 E420 E430 E55 car radio installation guide

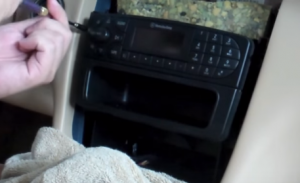

1. The original car radio.
The original car radio

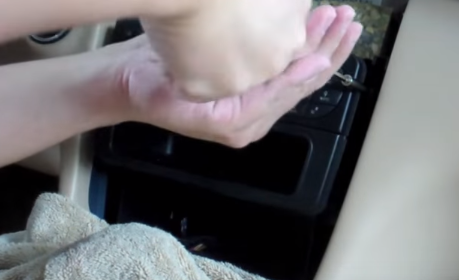

2. Use a special plastic tool to remove the trim bazel.
Use a special plastic tool to remove the trim bazel
2-1
3. Use a plastic remove tool to push up the heat vent.
Use a plastic remove tool to push up the heat vent
3-1
4. Remove 2 hidden screws with a screwdriver below the vent.
Remove 2 hidden screws with a screwdriver below the vent
4-1
5. Push down the vent and loose it.
Push down the vent and loose it
6. Remove the trim panel with a plastic removal tool.
Remove the trim panel with a plastic removal tool
7. Remove 2 screws that are holding the car radio.
Remove 2 screws that are holding the car radio
7-1
8. Take out the original car radio.
Take out the original car radio
9. Unplug the connectors and cables at the back of the radio.
Unplug the connectors and cables at the back of the radio
10. Check all the accessories for the new Seicane car radio.
11. Connect the harnesses to the back of the new Seicane car radio.
12. Connect the Seicane car radio to your original radio’s plugs.
13. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.
14. Put the new Seicane car radio into the dash.
15. Put everything into their original place. All the installation is done.
Wish you can get some skills from the above installation guide. If you come across any problems, you can consult your dealer or turn to a professional for help. Or you can ask someone experienced to help you alongside. However, if you haven’t got an ideal car radio yet, you can refer to a remarkable 1998 1999 2000 2001 2002 Mercedes Benz E Class W210 E300 E320 E400 E420 E430 E55 car radio from Seicane.
Upgraded to the intelligent and stable Android 6.0 operation and a powerful quad-core CPU, this car radio specific for 1998 1999 2000 2001 2002 Mercedes Benz E Class W210 E300 E320 E400 E420 E430 E55 will enable you to have a much smoother, easier and faster operation experience.
With the assistance of the built-in GPS navigation system, this unit enables you to locate where you are and navigate to any locations you would like to go to through turn-by-turn directions and voice prompts. Besides, this unit’s dual zone function enables you to freely listen to your favorite music while navigating.
Wish you enjoy your driving accompanied by this unit and good luck to you!
